Thick Film Chip Resistors Arrays (Convex Type)

1.Less Board space than individual chip resistor

2.Integrated 2~4 elements for Pull-up /Pull-down circuits

3.AEC-Q200 qualified

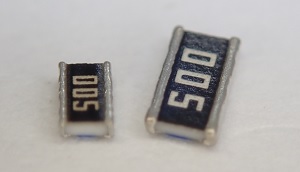

Metal Foil Current Sensing Chip Resistors

1.Ultra low resistance (down to 1mΩ),Suitable for large current detecting.

2.Extremely low TCR

3.Over coating: Molding compound UL-94V0 grade.

Metal Foil Current Sensing Chip Resistors(Four-Terminal)

1.Ultra low resistance,Suitable for large current detecting.

2.Extremely low TCR.

3.Over coating: Molding compound UL-94 V-0 grade.

4.Accuracy and precision in current sensing.

5.Low inductance <5nH.

6.AEC-Q200 compliant.

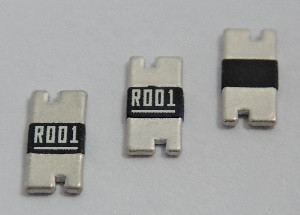

Metal Foil Current Sensing Chip Resistors

1.Extremly Low Resistence

2.Low TCR

3.Thinner resistor

Thick Film Chip Resistors Arrays (Planar Type)

1.Less Board space than individual chip resistor

2.Integrated 2~4 elements for Pull-up /Pull-down circuits
