Current Sensing Resistors

Excellent low temperature coefficient and high power withstand 0.5W~5W and minimum power loss products, provide lower resistance (0.3m ohm), and diversified choices (long side electrode & four terminals), use current control to ensure the circuit , The power supply operation monitoring system is safe and conforms to the AEC-Q200 standard.

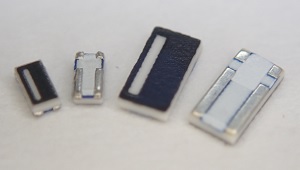

AMF

Current Sensing Resistors

1.four-terminal

2.High precision & stability

3.High Heat dissipation

4.Low TCR

5.Low thermal EMF

6.Extremly Low Resistence

APPLICATIONS

Laptops & Tablets
Smart Home

Type	Size	Power Rating at 70℃	Resistance Range(Ω)	TCR (ppm/℃)	Operation Temperature Range (℃)	Resistance Tolerance (%)	Document

Type	Size	Power Rating at 70℃	Resistance Range(Ω)	TCR (ppm/℃)	Operation Temperature Range (℃)	Resistance Tolerance (%)
AMF	0306	0.5W	0.001~0.020	±100	-55~+150	±1%
	0508	0.75W	0.001~0.015	±100	-55~+150	±1%
	0612	1W	0.001~0.015	±100	-55~+150	±1%
